| Model no | Type | # Sections |
Leg Sec Diameters | Max Height | Folded Length | Min Height | Net Weight | Includes Head? |
Series / Factory | Max Load | Camo Version? |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LN-404C | Systematic 85mm | 4 | 40 36 32 28 | 1800mm | 700mm | 115mm | 3.4kg | No | Mountain | 50kg | yes |
| LN-364C | Systematic 70mm | 4 | 36 32 28 25 | 1600mm | 580mm | 115mm | 2.5kg | No | Mountain | 35kg | yes |
| LN-324C | Systematic 55mm | 4 | 32 28 25 22 | 1500mm | 565mm | 115mm | 2.25kg | No | Mountain | 25kg | no |

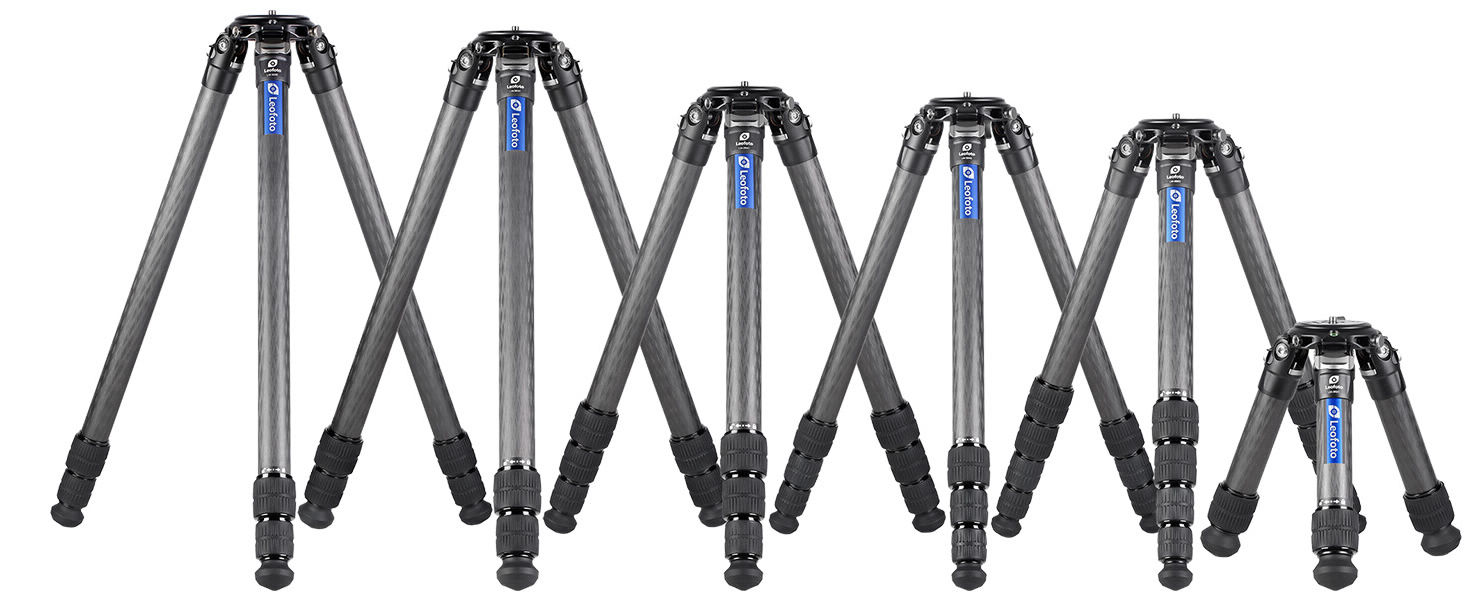

| LM-405C | Systematic
85mm | 5 | 40 36
32 28 25 | 1656mm | 530mm | 95mm | 2.45kg | No | Summit | 45kg | no |
| LM-404C | Systematic
85mm | 4 | 40 36
32 28 | 1800mm | 630mm | 105mm | 2.5kg | No | Summit | 40kg | no |
| LM-402C | Systematic
85mm | 2 | 40 36
| 450mm | 298mm | 80mm | 1.58kg | No | Summit | 50kg | no |
| LM-365C | Systematic
70mm | 5 | 36 32 28 25 22 | 1540mm | 490mm | 80mm | 1.97kg | No | Summit | 25kg | no |
| LM-364C | Systematic
70mm | 4 | 36 32 28 25 | 1450mm | 530mm | 90mm | 1.92kg | No | Summit | 30kg | no |
| LM-363C | Systematic
70mm | 3 | 36 32 28 | 1350mm | 595mm | 95mm | 1.85kg | No | Summit | 35kg | no |
| LM-362C | Systematic
70mm | 2 | 36 32 | 370mm | 270mm | 70mm | 1.29kg | No | Summit | 45kg | no |
| LM-324C | Systematic
70mm | 4 | 32 28 25 22 | 1450mm | 520mm | 75mm | 1.62kg | No | Summit | 25kg | no |
| LM-324CL | Systematic
70mm | 3 | 32 28 25 | 1400mm | 610mm | 100mm | 1.58kg | No | Summit | 35kg | no |
| LM-323C | Systematic
70mm | 3 | 32 28 25 | 1400mm | 610mm | 100mm | 1.58kg | No | Summit | 35kg | no |
| LM-323C | Systematic
70mm | 3 | 32 28 25 | 1400mm | 610mm | 100mm | 1.58kg | No | Summit | 35kg | no |
| Model no | Type | # Sections |
Leg Sec Diameters | Max Height | Folded Length | Min Height | Net Weight | Includes Head? |
Series / Factory | Max Load | Height w Column |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LS-365C
| Travel | 5 | 36 32 28 25 22 | 1520mm | 480mm | 80mm | 1.77kg | No | Ranger | 20kg | NA |
| LS-365C Kit | Travel | 5 | 36 32 28
25 22 | 1520mm | 480mm | 80mm | 2.31kg | LH-40 | Ranger | 20kg | NA |
| LS-364C | Travel | 4 | 32 28 25 22 | 1480mm | 540mm | 80mm | 1.77kg | No | Ranger | 25kg | NA |
| LS-362C
| Travel | 2 | 36 32 | 350mm | 260mm | 65mm | 1.11kg | No | Ranger | 45kg | NA |
| LS- 325C | Travel | 5 | 32 28
25 22 19 | 1528mm | 545mm | 170mm | 1.95kg | No | Ranger | 12kg | 1843mm |
| LS-325C Kit | Travel | 5 | 32 28
25 22 19 | 1528mm | 545mm | 170mm | 2.49kg | LH-40 | Ranger | 12kg | 1843mm |

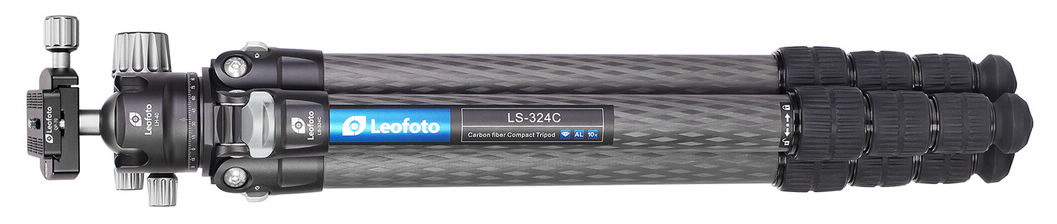

| LS-324C | Travel | 4 | 32 28 25 22 | 1305mm | 480mm | 78mm | 1.93kg | No | Ranger | 15kg | 1620mm |
| LS-324C Kit | Travel | 4 | 32 28
25 22 | 1305mm | 480mm | 78mm | 2.47kg | LH-40 | Ranger | 15kg | 1620mm |
| LS-323C
| Travel | 3 | 36 32 28 | 1520mm | 650mm | 95mm | 1.42kg | No | Ranger | 20kg | NA |
| LS-323C
Kit | Travel | 3 | 36 32
28 | 1520mm | 650mm | 95mm | 1.96kg | LH-40 | Ranger | 20kg | NA |
| LS-285C | Travel | 5 | 28 25 22
19 16 | 1530mm | 540mm | 180mm | 1.62kg | No | Ranger | 10kg | 1845mm |
| LS-285C Kit | Travel | 5 | 28 25 22 19 16 | 1530mm | 540mm | 180mm | 2.05kg | LH-36 | Ranger | 10kg | 1845mm |
| LS-284C | Travel | 4 | 28 25 22 19 | 1270mm | 530mm | 145mm | 1.42kg | No | Ranger | 10kg | 1585mm |
| LS-284C Kit | Travel | 4 | 28 25
22 19 | 1270mm | 530mm | 145mm | 1.73kg | LH-30 | Ranger | 10kg | 1585mm |
| LS-255C Kit | Travel | 5 | 25 22 19 16 13 | 1470mm | 520mm | 140mm | 1.26kg 1.57kg | LH-30 | Ranger | 8kg | 1790mm |
| LS-254C Kit | Travel | 4 | 25 22 19 16 | 1260mm | 520mm | 140mm | 1.24kg 1.55kg | LH-30 | Ranger | 8kg | 1575mm |
| LS-225C Kit | Travel | 5 | 22 19 16 13 10 | 1270mm | 450mm | 130mm | 0.93kg 1.11kg | LH-25 | Ranger | 4kg | 1585mm |
| LS-224C Kit | Travel | 4 | 22 19 16 13 | 1300mm | 470mm | 130mm | 0.91kg 1.09kg | LH-25 | Ranger | 6kg | 1615mm |
| LS-223C | Travel | 3 | 22 19 16 | 310mm | 200mm | 45mm | 0.54kg | No | Ranger | 10kg | NA |
| LS-223C Kit | Travel | 3 | 22 19 16 | 310mm | 200mm | 45mm | 0.72kg | LH-25 | Ranger | 10kg | NA |
| Model no | Type | # Sections |
Leg Sec Diameters | Max Height | Folded Length | Min Height | Net Weight | Includes Head? |
Series / Factory | Max Load |
|---|---|---|---|---|---|---|---|---|---|---|
| LS-365CEX | Travel Level | 5 | 36 32 28 25 22 | 1555mm | 515mm | 102mm | 1.95kg | No | Ranger Level | 15kg |
| LS-325CEX | Travel
Level | 5 | 32 28
25 22 19 | 1460mm | 485mm | 91mm | 1.6kg | No | Ranger
Level | 10kg |
| LS-324CEX | Travel
Level | 4 | 32 28 25 22 | 1520mm | 485mm | 91mm | 1.61kg | No | Ranger
Level | 15kg |
| LS-285CEX | Travel
Level | 5 | 28 25 22 19 16 | 1468mm | 476mm | 102mm | 1.35kg | No | Ranger
Level | 8kg |
| LS- 284CEX | Travel
Level | 4 | 28 25 22 19 | 1475mm | 535mm | 85mm | 1.33kg | No | Ranger
Level | 10kg |
| LS- 255CEX | Travel
Level | 5 | 25 22 19 16 13 | 1406mm | 450mm | 83mm | 1.03kg | No | Ranger
Level | 6kg |
| LS-223CEX | Travel
Level | 3 | 22 19 16 | 317mm | 220mm | 73mm | 0.61kg | No | Ranger
Level | 5kg |

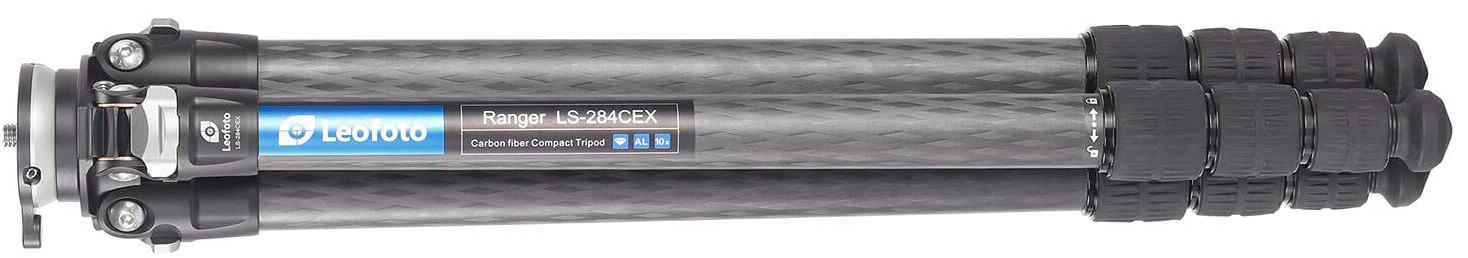

| LS-284CVL | Travel
Tilt | 4 | 28 25 22 19 | 1545mm | 500mm | 145mm | 1.4kg | No | Ranger
Tilt | 10kg |

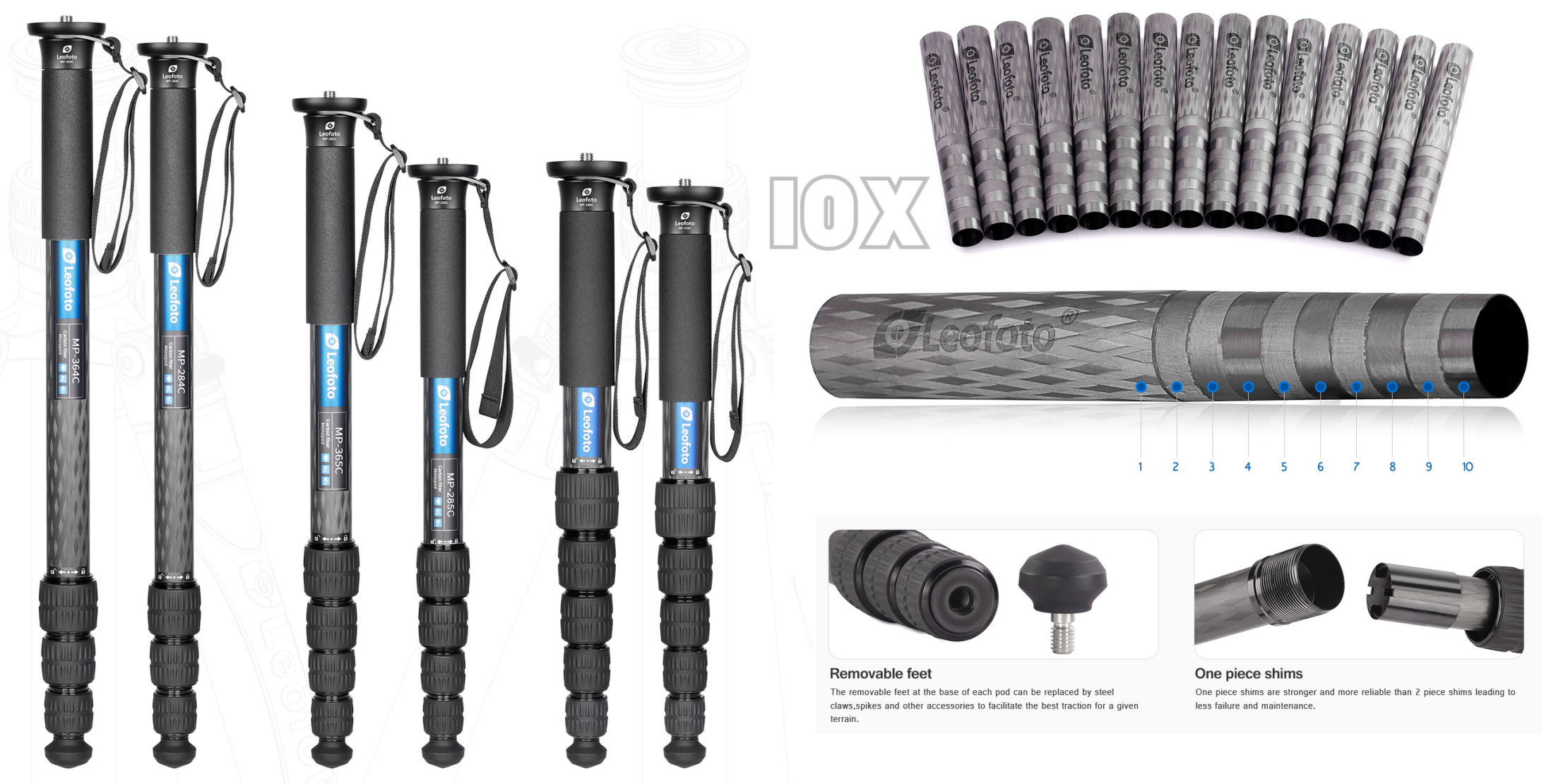

| Model no | Type | # Sections |
Leg Sec Diameters | Max Height | Folded Length | Weight | Max Load |
|---|---|---|---|---|---|---|---|

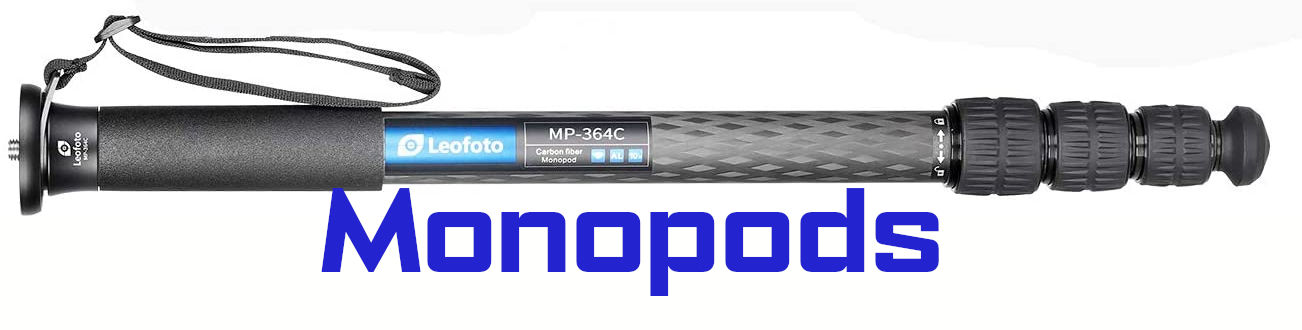

| MP-364C | Travel | 4 | 36 32 28 25 | 1700mm | 545mm | 584g | 20kg |
| MP-284C | Travel | 4 | 28
25 22 19 | 1650mm | 523mm | 412g | 15kg |
| MP-365C | Travel | 5 | 36 32 28 25 22 | 1755mm | 495mm | 598g | 17kg |
| MP-285C | Travel | 5 | 28 25
22 19 16 | 1530 | 483mm | 406g | 13kg |
| MP-366C | Travel | 6 | 36 32 28
25 22 19 | 1650mm | 440mm | 585g | 15kg |
| MP-326C
| Travel | 6 | 32 28 25 22 19 16 | 1555mm | 415mm | 415g | 12kg |
| GO-125 | Travel | 5 | 22 19 16 13 10 | 1250mm | 340mm | 200g | 3kg |
| Killer Kit | Travel | 5 | 28 25 22
19 16 | 1530 | 483mm | 406g | 13kg |
